hekaDrill
The Zethon high-speed surgical instrument system offers un-matched performance and versatility for delicate bone dissection, making it ideally suited for a wide range of surgical disciplines, including spine, neuro and ENT procedures.
Motor handpiece features:
- High-speed performance 200 – 85,000 rpm
- High-torque motor control – even at low speeds
- Foot pedal or optional lever control
- Adjustable motor acceleration and braking
- Low noise and vibration levels
- Ergonomic, slimline pencil grip design
- Optional pneumatic handpiece
Attachment and cutting tool features:
- Choice of straight or angled attachments with tapered nose design, aids surgical visibility
- Small bore attachments to fit 2.4mm tools available in standard or slimline options
- Optional large bore attachments to fit 3.2mm tools Intuitive 3-step tool/attachment locking system Comprehensive range of cutting tools and burs for each surgical need Adjustable tool exposure lengths – 5 positions Footed attachments or craniotomes Clear colour coding identifies matching attachments and bur packaging Low profile irrigation kits with precision flow rate and anti-drip control Perforator and metal cutting attachment options

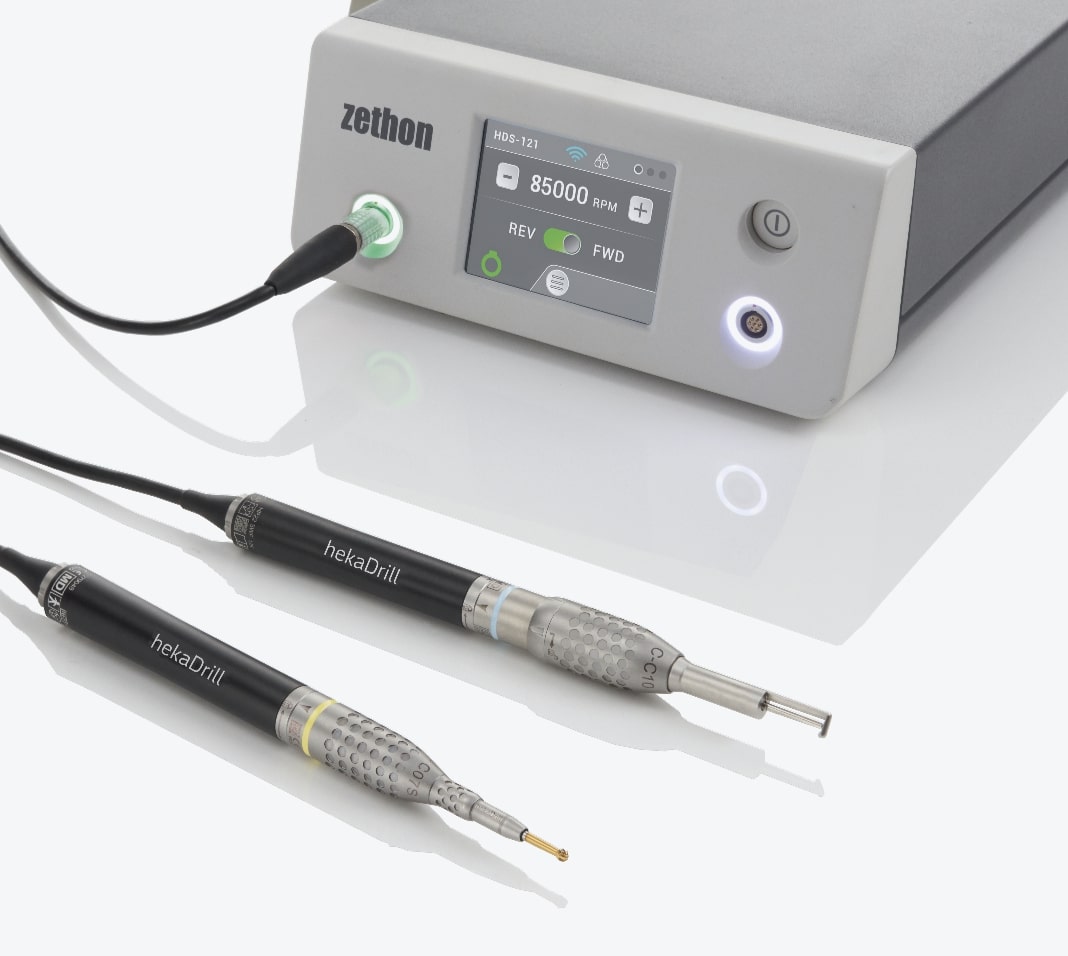

Power console and foot pedal features:
- Power console available with or without irrigation pump
- High resolution, responsive touch screen
- Intuitive and easy to use out of the box
- Compact footprint design of both power console and foot pedal
- Choice of wired or wireless foot pedal connection
- Power console firmware updates readily performed via USB connector
- Foot pedal design allows easy access and repositioning
- The multi-function 3 button foot pedal enhances optimal handpiece control

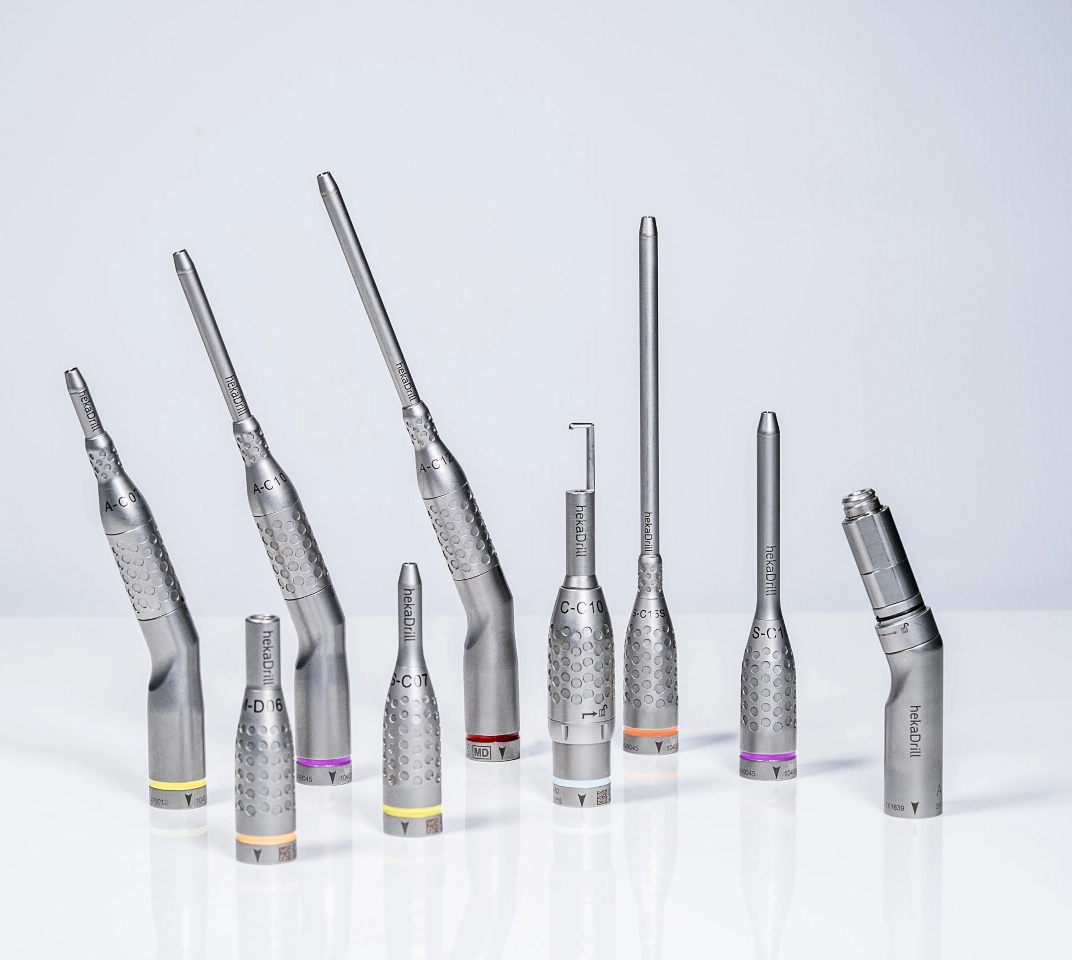

Attachments
The hekaDrill series comprises of slimline, straight, angled, footed, metal cutter, and modular attachments. The slim line attachments offer high visibility.
The angled modular attachment allows straight attachments to be converted into angled – ideal for customers requiring full flexibility whilst reducing costs and maintaining performance.

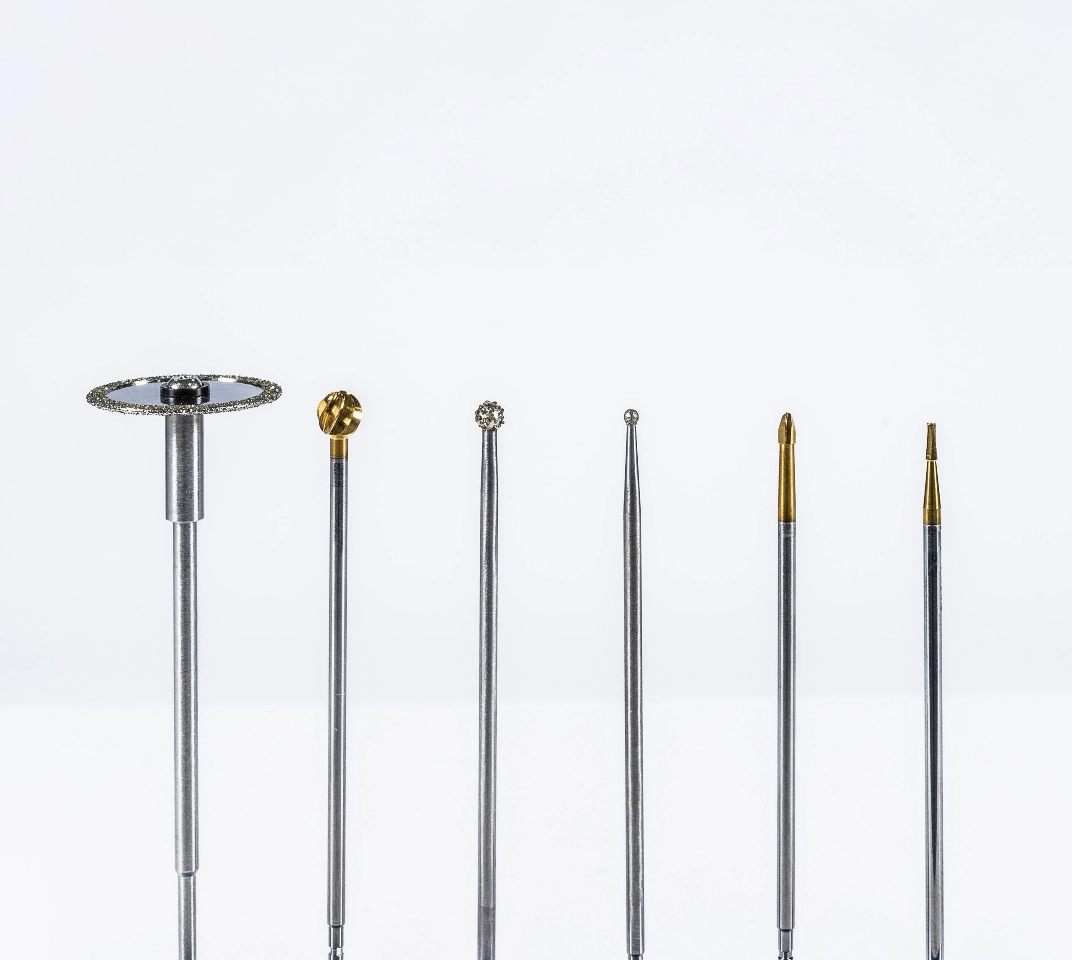

Burs
The Zethon hekaDrill system provides a comprehensive range of burs that serve a variety of surgical needs. We offer a selection of shapes and finishes for the most delicate to the toughest cuts. Our hekaDrill high speed burs generate less heat; giving a cool, smooth cut, whilst avoiding the potential risk of bone damage.

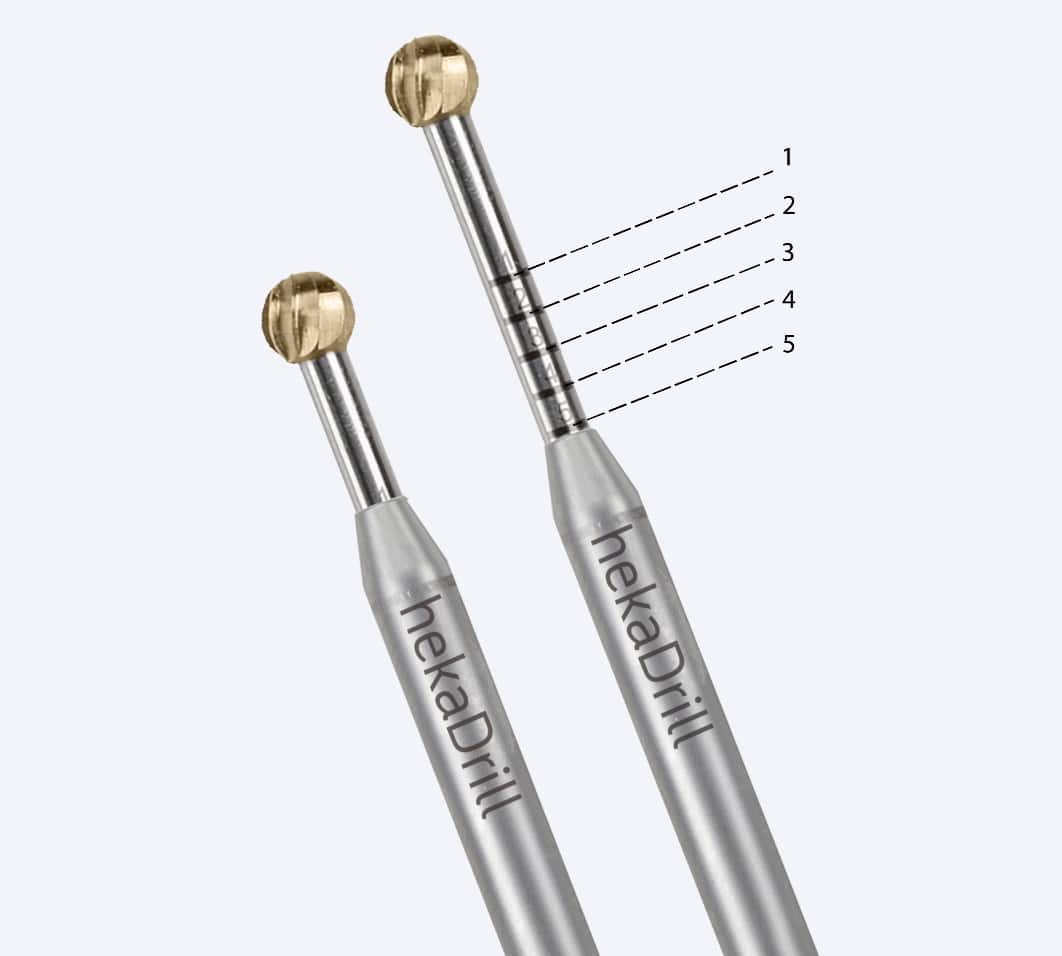

Adjustable Tool Exposure Lengths
The Zethon high speed range features a single rotary bur that allows 5 possible exposure positions, offering total flexibility and reduced inventory costs.
